30P06D TO-252 High Power Transistor , Custom Field Effect Transistor

Name: 30P06D TO252 High Power Transistor Custom Field Effect Transistor
Brand: Hua Xuan Yang
Price: 1 USD

Brand Name : Hua Xuan Yang

Model Number : 30P06D TO-252

Certification : RoHS、SGS

Place of Origin : ShenZhen China

MOQ : negotiation

Price : Negotiated

Payment Terms : L/C T/T Western Union

Supply Ability : 18,000,000PCS / Per Day

Delivery Time : 1 - 2 Weeks

Packaging Details : Boxed

Product name : High Power Transistor

Features : High Power

Drain-Source Voltage : -60 V

Gate-Source Voltage : ±20 V

Other name : Field Effect Transistor

Contact Now

30P06D TO-252 High Power Transistor , Custom Field Effect Transistor

High Power Transistor DESCRIPTION

The 30P06D uses advanced trench
technology to provide excellent R DS(ON)
and low gate charge .This device is
suitable for use as a load switch or in
PWM applications.

High Power Transistor GENERAL FEATURES

V DS =- 60V,I D =-30A
R DS(ON) < 40mΩ @ V GS =-10V
R DS(ON) < 55mΩ @ V GS =-4.5V
High Power and current handing capability
Lead free product is acquired
Surface Mount Package

High Power Transistor Application

PWM applications
Power management

30P06D TO-252 High Power Transistor , Custom Field Effect Transistor

Package Marking and Ordering Information

ABSOLUTE MAXIMUM RATINGS(TA=25℃unless otherwise noted)

30P06D TO-252 High Power Transistor , Custom Field Effect Transistor

ELECTRICAL CHARACTERISTICS (TA=25℃unless otherwise noted)

NOTES:

1. Repetitive Rating: Pulse width limited by maximum junction temperature.
2. Surface Mounted on 1in 2 FR4 Board, t ≤ 10 sec.
3. Pulse Test: Pulse Width ≤ 300μs, Duty Cycle ≤ 2%. 4. Guaranteed by design, not subject to production testing.

TYPICAL ELECTRICAL AND THERMAL CHARACTERISTICS

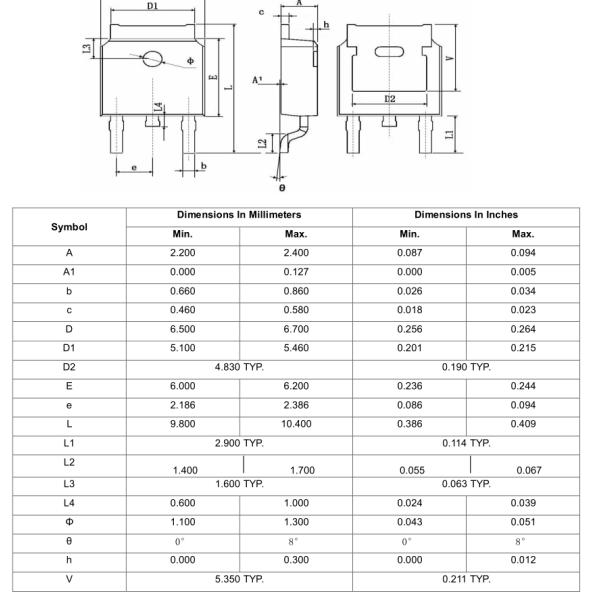

TO-252 Package Information
